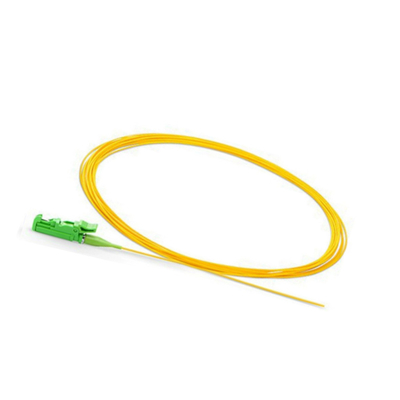

0.9mm E2000 Fiber Pigtail Patch Cord With LSZH Yellow Jacket

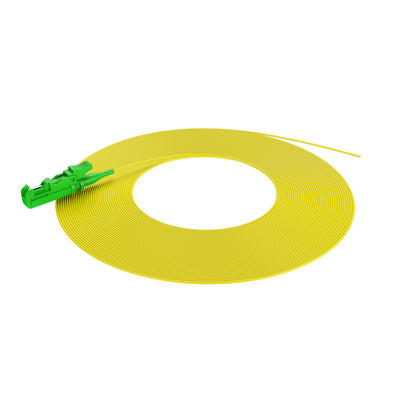

  • 0.9mm E2000 Fiber Pigtail Patch Cord With LSZH Yellow Jacket
  • 0.9mm E2000 Fiber Pigtail Patch Cord With LSZH Yellow Jacket
Place of Origin China
Certification Rohs SGS ISO9001:2008
Model Number CFO-GC-03-067
Minimum Order Quantity 10pcs
Packaging Details 10pcs in blister bag
Delivery Time 2days for samples, 7-15days for bulk order
Payment Terms L/C, T/T, Western Union, Payapl
Supply Ability 10000pcs/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pigtail-E2000APC Fiber Type G657 Or G652
Material LSZH Diameter 0.9mm
Color Yellow Cable Length 1m/2m/3m/5m/10m/15m/20m/30m/50m/100m
High Light

E2000 Fiber Pigtail Patch Cord

,

LSZH Yellow Jacket FTTH Patch Cord

,

CATV Pigtail Patch Cord
Leave a Message
Product Description

0.9mm E2000 Fiber Pigtail Patch Cord With LSZH Yellow Jacket



LSZH Yellow Jacket 0.9mm E2000 Fiber Pigtail For CATV/FTTH/LAN/WAN Networks



Fiber Pigtail is utilized to achieve accurate mounting for precision alignment of fiber optical components. Fiber optic pigtails provide a fast way to link communication devices, mostly used to terminate fiber optic cable by fusion or mechanical splicing. And the pigtails are usually found in ODF, fiber distribution boxes and terminal boxes, etc. They are widely used in CATV, FTTH/FTTX, LAN/WAN networks, and more.





1. Product Description of LSZH Yellow Jacket 0.9mm E2000 Fiber Pigtail For CATV/FTTH/LAN/WAN Networks:



E2000 pigtail is a cable with a high-grade E2000 fiber optic connector on one end, the end unterminated. They can configure single mode and multimode fiber for the specific application. These E2000 pigtail Assemblies are available in UPC and APC polish with simplex or duplex fiber cable versions. Cable length, cable diameter, and jacket are optional. The typical type of fiber pigtail uses 0.9mm cable because it is especially suitable for high-density splice applications.





2. Product Features of LSZH Yellow Jacket 0.9mm E2000 Fiber Pigtail For CATV/FTTH/LAN/WAN Network:



1. E2000 plug according to IEC 61754-15.
2. Single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and G.657.A1 compatible to G.652.D.
3. Compact loose tube fiber with dia. 0.9 mm, length 2.0 m.
4. Color sequence in sets according to IEC 60304: red, green, blue, yellow, white, gray, brown, violet, turquoise, black, orange, and pink. Secondary and primary coating same color.
5. Plug connector mounted on one side
6. With the test report, insertion loss and return loss were tested at 100 %
7. all available variants can be created with the cable configurator





3. Applications of LSZH Yellow Jacket 0.9mm E2000 Fiber Pigtail For CATV/FTTH/LAN/WAN Network:



1. Data Transmission Networks
2. Image transmission Networks
3. CATV
4. Optical test instrument
5. Photoelectric automatic control system





4. Technical Specifications of LSZH Yellow Jacket 0.9mm E2000 Fiber Pigtail For CATV/FTTH/LAN/WAN Network:



► The Connector

0.9mm E2000 Fiber Pigtail Patch Cord With LSZH Yellow Jacket 0

      ☝E2000 Connector                            ☝0.9mm Optical Cable



Project Spec. Remarks
Operating wavelength 1260～1650nm

GR-326-CORE；

IEC 61300
Insertion loss

≤0.3dB(Typical value:0.2dB)
Return loss

≥60dB(APC)≥50dB(UPC)
Repeatability ≤0.2dB
Interchangeability ≤0.2dB

Mechanical Endurance

 500 times
Working temperature -40～85℃





► Optical Cable



0.9mm E2000 Fiber Pigtail Patch Cord With LSZH Yellow Jacket 1



Project Spec. Remarks

Fiber Type

G657,G652

Follow ROHS and IEC Standard

Cable Diameter

0.85±0.05mm

Out of roundness

≤10%

Cable Material

LSZH,PVC

Cable Color

 Yellow or Other

Attenuation

≤0.36-1310nm ≤0.25-1550nm

Working temperature

 -40～85℃





5. Carefiber Service:



Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high-quality fiber optical communication products. We provide Fiber optic patch cords, Fiber optic connectors, Fiber optic adaptors, Fiber optic PLC splitters, Fast connectors, Fiber optic patch panels, Fiber terminal boxes, Fiber closure, and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.



Carefiber Optical Technology Co., Limited has passed the international quality certification: ISO 9001. We not only have top-ranking quality control departments but also establish a complete and reliable quality assurance system. We carry out the system in all procedures and processes of production and management. Moreover, we adopt advanced quality control equipment and a first-rate expert team, making sure the best products are quality to customers in the whole world.



We sincerely invite all interested buyers to visit our company and contact us directly for further information. we will reply to you as soon as possible!!!



Carefiber, Care your life.
