PC ABS Material Fiber Optic Distribution Box 16 Core FTTx Outdoor Wall Mounted Box

China PC ABS Material Fiber Optic Distribution Box 16 Core FTTx Outdoor Wall Mounted Box supplier
PC ABS Material Fiber Optic Distribution Box 16 Core FTTx Outdoor Wall Mounted Box supplier PC ABS Material Fiber Optic Distribution Box 16 Core FTTx Outdoor Wall Mounted Box supplier

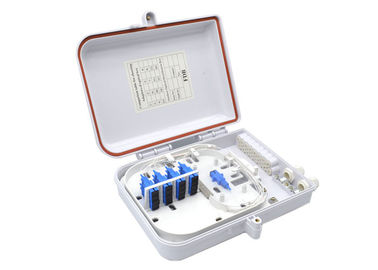

Large Image :  PC ABS Material Fiber Optic Distribution Box 16 Core FTTx Outdoor Wall Mounted Box

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: ISO9001,Rohs
Model Number: CFO-Distribution Box

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: 1pc middle box, 6pcs in one carton
Delivery Time: 3days for samples; 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,Paypal, D/P, D/A
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
In Put: 2 Port Splitter: 1*8 & 1*16 PLC Splitter
Installation: Wall-mounted, Pole-mounted Out Put: 16 Port
Dimension: 306*240*106mm Function: Cable Terminal, Passive Splitter

PC ABS Material Fiber Optic Distribution Box 16 Core FTTx Outdoor Wall Mounted Box



Distribution box Type outdoor Optical Distribution Boxes is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.





1. Features:


PC+ABS material used ensures the body strong and light..
Wet-proof, water-proof, dust-proof, anti-aging
Easy installations: Ready for wall mount – installation kits provided
Space saving: Double-layer design for easier installation and maintenances
Easy installations: Ready for wall mount – installation kits provided.
Protection level up to IP55
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.…





2. Characteristics:



The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain; For indoor and outdoor overhead and hang wall use;



Box of body use "lock type" structure, box of body switching of simple, convenient, with a lock function safe use;



Melt receive flip type design simple to use, melting with complete separation of fine points fibre layout more reasonable.

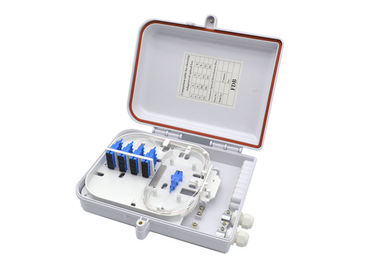

PC ABS Material Fiber Optic Distribution Box 16 Core FTTx Outdoor Wall Mounted Box

3. Specification:





Model No FTTh box
Dimension( L×W×H ) 302mm×240mm×106mm
Weigth(kg) 1.8kg
Function cable terminal,passive splitter
Adaptor type SC
Max ratio 1:8 or 1:16
Max capacity(F) 16
Material ABS



Environment

  1. Tempreture: -40°C—60°C
  2. Ambient Humidity : 95% above 40°C
  3. Air pressure: 62kPa—105kPa

Accessories:

  1. 2 hoops (outdoor air frame) Optional
  2. wall mount kit 1 set
  3. two lock keys used waterproof lock



4. Application:



Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications networks
Local Area Networks(LANs)



5. FAQ:



Q1:How to 100% guarantee the insertion loss of the adapters is below 0.1dB/0.2dB?
Firstly the quality of the sleeve , secondly the accurate size of housing,
then 100% inspection in the production is must.
Q2:Why some times too tight or loose when assemble the adapters to the plate?
There is tolerance of the thickness of the plate especially baking finished plate, you must make sure the gap distance is just match the plate thickness.
Q3:How to keep the clearance of the endface of the connectors?
Do not take off the dust cap in transportation and stocking, make sure not to touch the end face with hand. If found dirty or scratch under telescope, please clean it with alcohol.
Q4:What’s the warranty of ADTEK fiber optic patch cord?
We can ensure lifetime warranty as our fiber optic cable is UL approved and all our
fiber optic patch cords are 100% testing passed
Q5: Can we print our logo on the fiber cable jacket?
Yes, of course. You can decide the print on the fiber cable jacket. MOQ is 1KM when
you want to add your logo. No MOQ as neutral printing.
Q6: What is the insertion loss for singlemode?
It is ≤0.2dB (Typical ≤0.1dB)
Q7: Can you do the 3D (interferometer) test?
Yes, we have the interferometer in our factory, we usually do the test as customers
request. Our 30 test passing rate is over 90%.
