FTTH Telecom MPO Patch Cord Blue 8 Core 12 Core Fiber Optic Cable APC Polishing

China FTTH Telecom MPO Patch Cord Blue 8 Core 12 Core Fiber Optic Cable APC Polishing supplier
FTTH Telecom MPO Patch Cord Blue 8 Core 12 Core Fiber Optic Cable APC Polishing supplier FTTH Telecom MPO Patch Cord Blue 8 Core 12 Core Fiber Optic Cable APC Polishing supplier

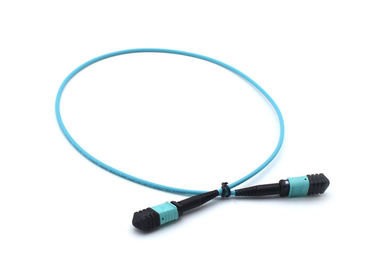

Large Image :  FTTH Telecom MPO Patch Cord Blue 8 Core 12 Core Fiber Optic Cable APC Polishing

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: ISO9001:2008,rohs
Model Number: CFO-MPO Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1pc pp bag
Delivery Time: 3days for samples, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,paypal, D/P, D/A
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Return Loss(RL): SM >60dB MM>30dB Model Number: Diameter SM 9/125um MM 62.5/125
Insert Loss(IL): <=0.7dB Polishing: PC/UPC/APC
Color: Orange, Yellow, White Length: 1m, 2m, 3m, 5m Or Customized

FTTH Telecom MPO MTP Patch Cord Blue 8 Core 12 Core Fiber Optic Cable

1. Features:



IEC61754-7 & GR-1435-CORE compliant.
Modular design, plug-locking structure,easy for test,Install,remove and adjust.
Usually,single MTP / MPO connectors typically can accommodate 12 or more fiber,
1U height wiring space can accommodate up to 96 LC optical interface, Section.
Saving Cabinet and rack space, easy cable management
Kinds of fiber,cable available,to meet different customer needs.
Can choice of male,female.Achieve precise positioning with the adapter connected via
Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical
fiber communication systems and high-efficiency high-density interconnect wiring.
For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel
requirements 10/100-1Gbps.



2. MPO/MTP type:



  male(with Pin),female(without Pin)
Ferrule type Standard SM,Low loss SM;Standard MM,Low loss MM
Fiber core 4core,8core,12core,24core
Housing color Green(SM),Beige(MM),Yellow(SM Low loss),Blue( OM3 50/125 )
Polishing way PC,APC
Cable type Ribbon cable,Ribbon fiber,3.0mm Mini cable(250um12F,24F),0.9mm cable


3. MPO/MTP test requests


a. Endface request:

400 X Defect description Allow quantity
Fiber(9um,50um,62.5um) White scratches ≤3um No limited
  Spot ≤2um 5 PCS
  Defect / No allowed
Cladding
(62.5-125um)
White scratches ≤3um No limited
    ≤5um 1 PCS
  Black scratches ≤3um 2 PCS
  Black spot ≤2um No limited
    ≤5um 3 PCS
  Defect ≤2um Around no limited
    ≤15um Total length is less than the side length 1/4
  Plastic ring / No limited



b. Performance:

MPO/MTP SM standard ferrule SM low loss ferrule MM standard ferrule MM low loss ferrule
IL Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
  Max 0.75dB 0.35dB 0.65dB 0.35dB
RL APC≥50dB   25dB 35dB
  PC 40dB
Repeatability ≤0.30dB(Plug more than 500 times) 0.30dB(Plug more than 1000 times)
Interchangeability ≤0.30dB(With either a matching connector)
Tensile strength ≤0.30dB(Maximum tension 66N)
Shock ≤0.30dB(10~55Hz)
Temperature Range -40°C ~ +75°C


c. Interference indicators:



MPO/MTP Connector Dimension 3D Test
Radius of Curvature X ≥2000mm ,Y ≥50mm
Fiber Height 1000~4000 nm
Endface Angle X ±0.3° ,Y ±0.3°
Core Dip ±300nm


d. Length Tolerance:



Length(M) Tolerance
≤10 + 10CM
10<L≤30 + 15CM
>30 + 10%

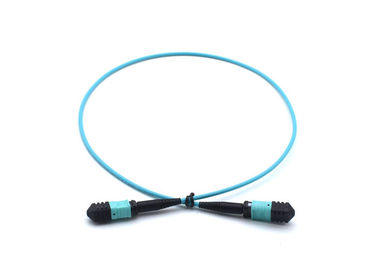

FTTH Telecom MPO Patch Cord Blue 8 Core 12 Core Fiber Optic Cable APC Polishing



4. Application:



Telecommunication

Computer Networks

CATV networks

Active device termination



5. Carefiber Offer:



Carefiber Optical Technology Co., Limited has passed the international quality certification: ISO 9001. We not only have top-ranking quality control departments but also establish complete and reliable quality assurance system. We carry out the system in all procedures and processes of production and management. Moreover, we adopt advanced quality control equipment and first-rate expert team, making sure best products' quality to customers in the whole world.



Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.



We sincerely invite all interested buyers to visit our company and contact us directly for further information. Carefiber, Care you life.
