24 Core MPO Patch Cord MPO / MTP - LC Fiber Optic Patch Panel For Test Equipment

China 24 Core MPO Patch Cord MPO / MTP - LC Fiber Optic Patch Panel For  Test Equipment supplier

Large Image :  24 Core MPO Patch Cord MPO / MTP - LC Fiber Optic Patch Panel For Test Equipment

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: ISO9001:2008,rohs
Model Number: CFO-MPO Patch Cord box

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1pc pp bag
Delivery Time: 3days for samples, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Return Loss(RL): >=40dB Application: MPO/MPT Application
Insert Loss(IL): <=0.7dB Polishing: PC/UPC/APC
Color: Black Cable Type: Available Multimode(62.5/125,standard 50/125 And OM3, OM4), Single Mode(OS1/2) Fiber

24 Core MPO Patch Cord MPO / MTP - LC Fiber Optic Patch Panel For Test Equipment

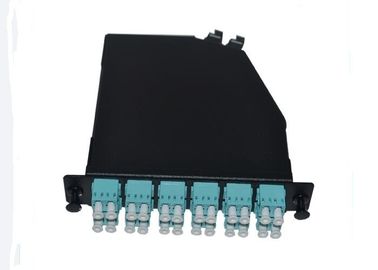

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used,to interconnect MPO backbones with LC or SC patching.



Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.

MPO Cassettes contain factory controlled and tested,MPO-LC fan-outs to deliver optical performance and reliability.Low loss MPO Elite and LC or SC Premium versions are offered

featuring low insertion loss for demanding power budget high speed networks.

The MPO/ MTP patchcords are multi-fiber patchcords using the MPO/MTP connector in fiber counts of 8, 12 or 24. They are available in different cable structures and customized lengths tailored to your exact need





1. Features:



Cable array in the cassette can be AB/BA
Cable array in the cassette can be AB/AB
MPO trunk lines connecting port is fixed on the back of cassette
Can be installed in various Modules Type ODF
Easy to be installed , moved and updated



2. Application:



 CATV

 Active dvice termination

 Telecommunication networks

 Metro

 Local Area Networks(LANs)

 Data Processing networks

 Test Equipment

 Premise installations.

 Wide Area Networks(WANs)




24 Core MPO Patch Cord MPO / MTP - LC Fiber Optic Patch Panel For  Test Equipment












3.Technical Specification:



    Multi Mode Single Mode
IL MPO Single max :0.35db (L) Single Max : 0.60db (G) Single max :0.35db (L) Single max :0.75db (G)
  LC MAX :0.10dB(L) MAX :0.15 db (G) max :0.30db
RL MPO >20DB >60DB (8 degree Angle Polish )
  LC >30db >50 db (UPC) >60DB(APC)
Mechanical MPO <0.2DB, 200 times insertion
  LC <0.2db, 500times intertion
  Working Temp -20~ +60 'C
Enviromental Storage Temp -40~ + 70'C
  Install Temp -5~ + 50'C




4. Why choose us to cooperate?

1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.



5. Order information:



Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized

Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored



6. Carefiber Offer:



Carefiber Optical Technology Co., Limited has passed the international quality certification: ISO 9001. We not only have top-ranking quality control departments but also establish complete and reliable quality assurance system. We carry out the system in all procedures and processes of production and management. Moreover, we adopt advanced quality control equipment and first-rate expert team, making sure best products' quality to customers in the whole world.



Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.



We sincerely invite all interested buyers to visit our company and contact us directly for further information. Carefiber, Care you life.
